Products Description
Indoor Advertising led display Screen

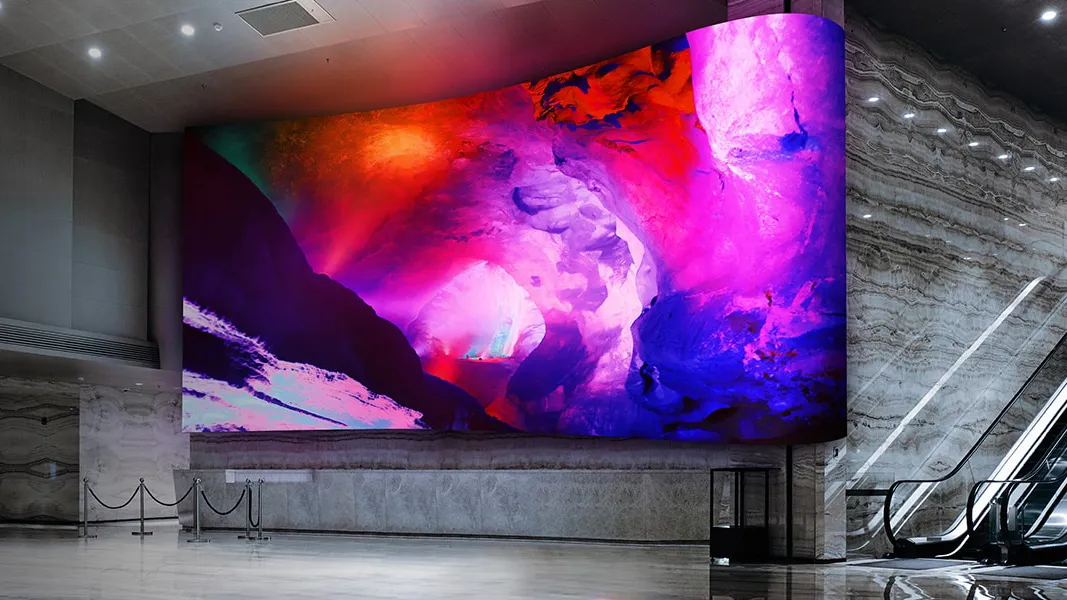

LEDManuf indoor advertising LED display screens captivate viewers with high contrast and flawless image presentation, ensuring vibrant colors from a distance.

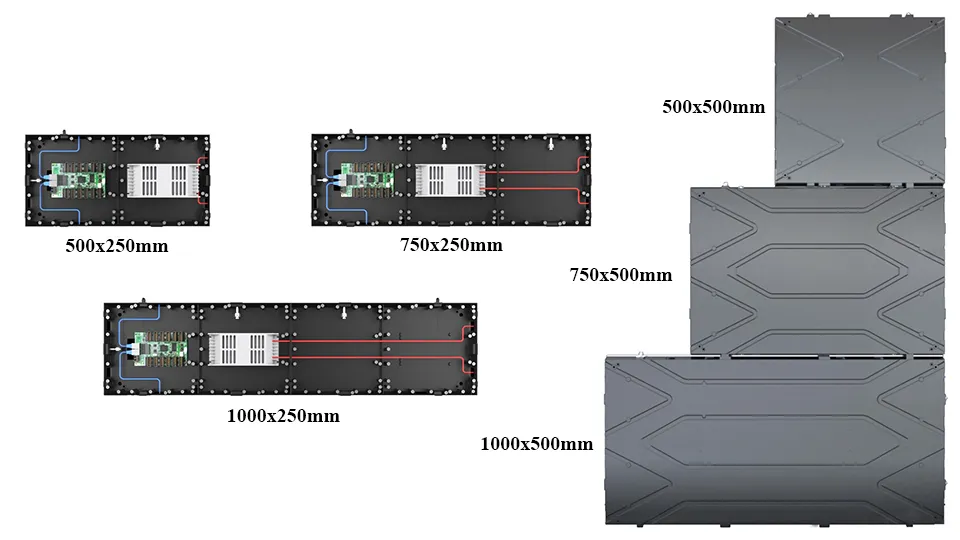

LedManuf indoor advertising LED display screens have various sizes, the most commonly used size is 1000x250mm.
In addition to 500x250mm, 500x500mm, 750x500mm, 1000x500mm and 1000x750mm and other sizes can be selected.

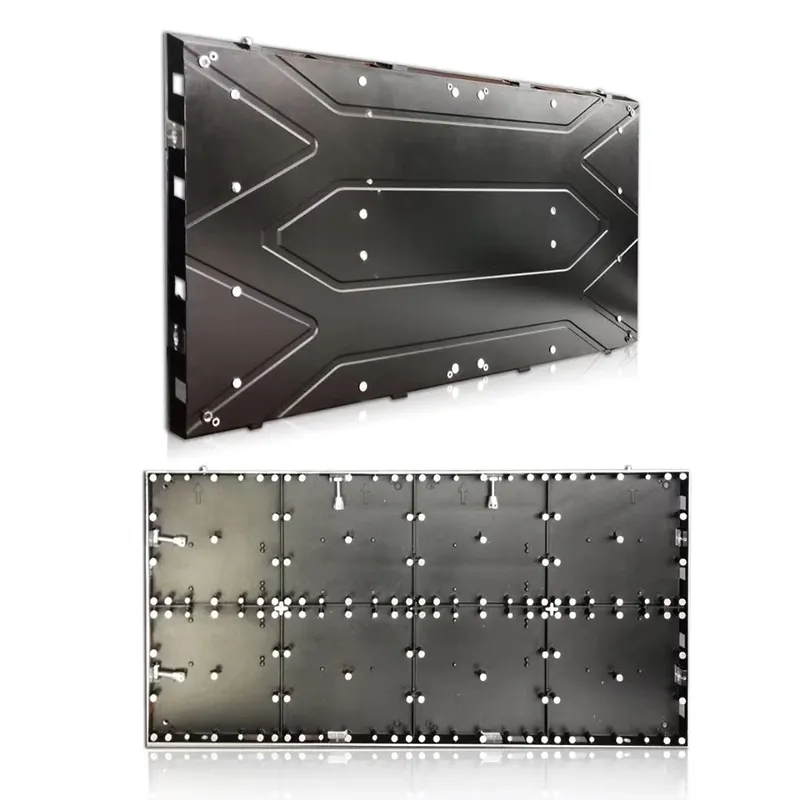

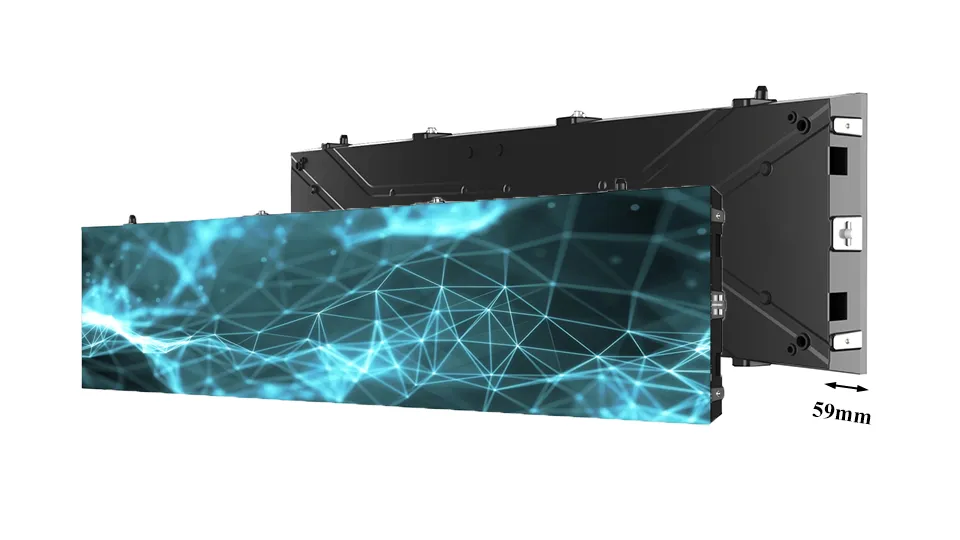

Light Weight And Thin
LedManuf Indoor Advertising LED Display, the size of 1000x250mm LED display weighs only 6.5KG/pc and has a thickness of 59mm. It has good heat dissipation performance and can be quickly cooled internally without a fan.

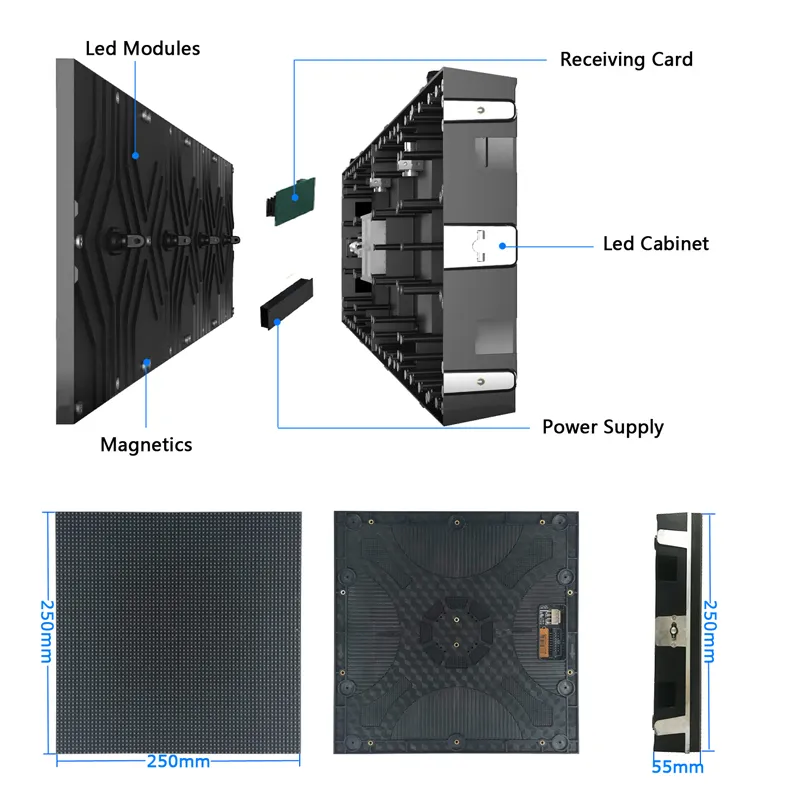

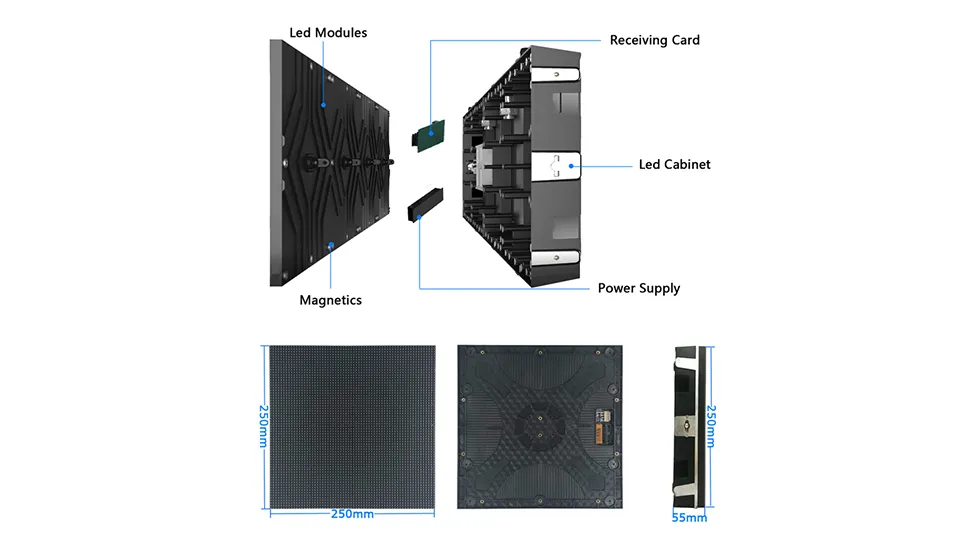

Indoor LED Display Cabinet Structure
The LedManuf indoor advertising LED display has a perfect structural design. This diagram shows the front and rear views of the module, which helps to understand its structural layout more intuitively.Includes: 250x250mm LED modules, magnetics, receiving card, LED cabinet and power supply.

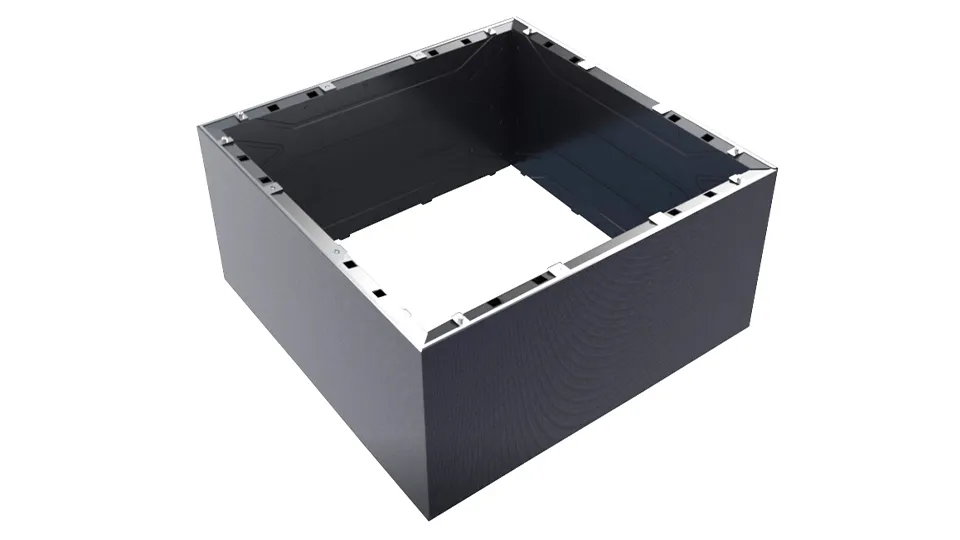

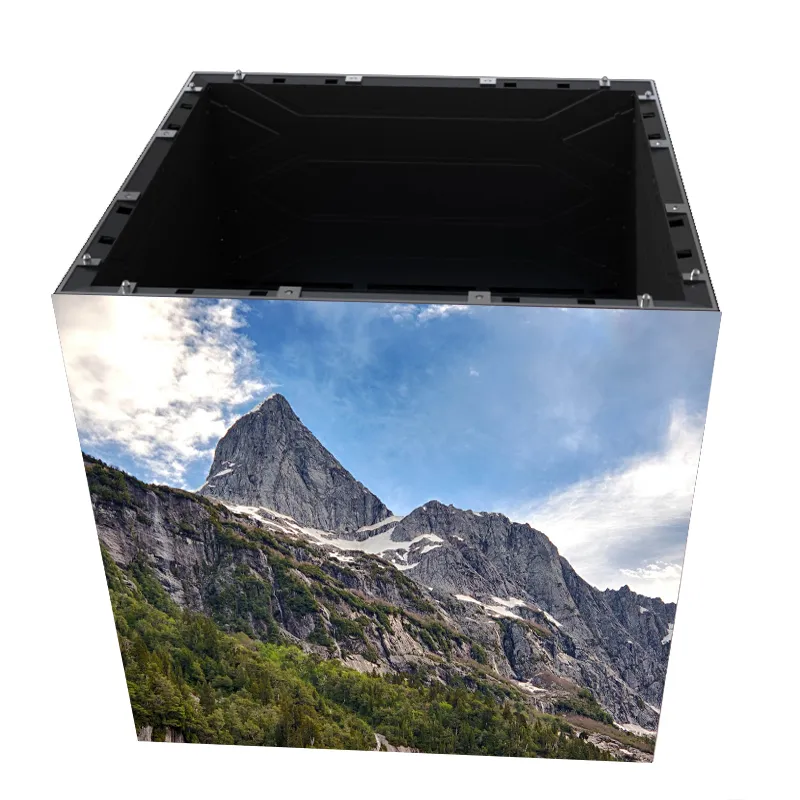

Right Angle Design
The LedManuf indoor advertising LED display supports a 45° miter design and can be seamlessly spliced into a 90° right-angle LED display, suitable for some special buildings and application scenarios.

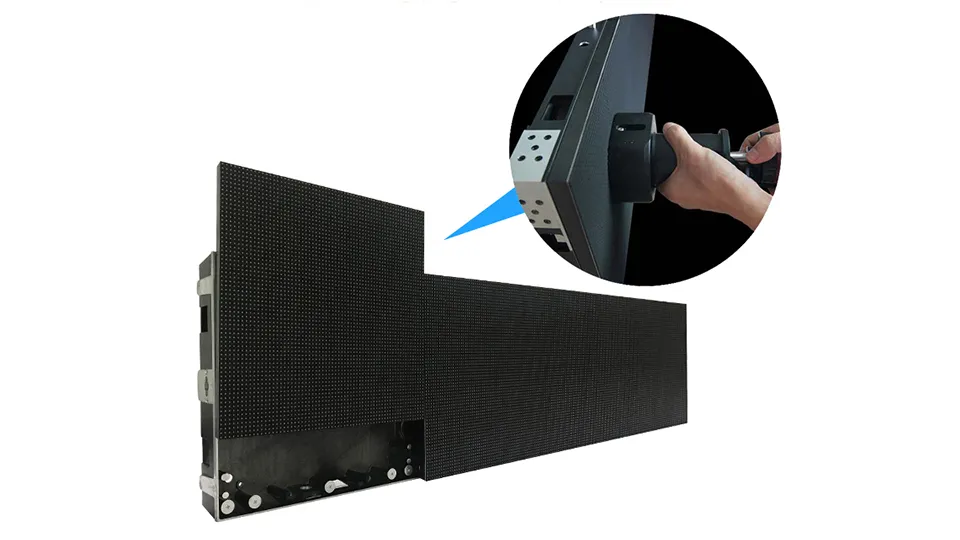

Front Maintenance Design
The indoor advertising LED display features a front maintenance design that allows you to easily remove the LED module from the front using a tool in just 5 seconds.
The indoor advertising LED display screen is also magnetic, enhancing convenience during maintenance and ensuring smooth operation.
This feature provides an effective time-saving solution that reduces costs and saves labor.
Applications

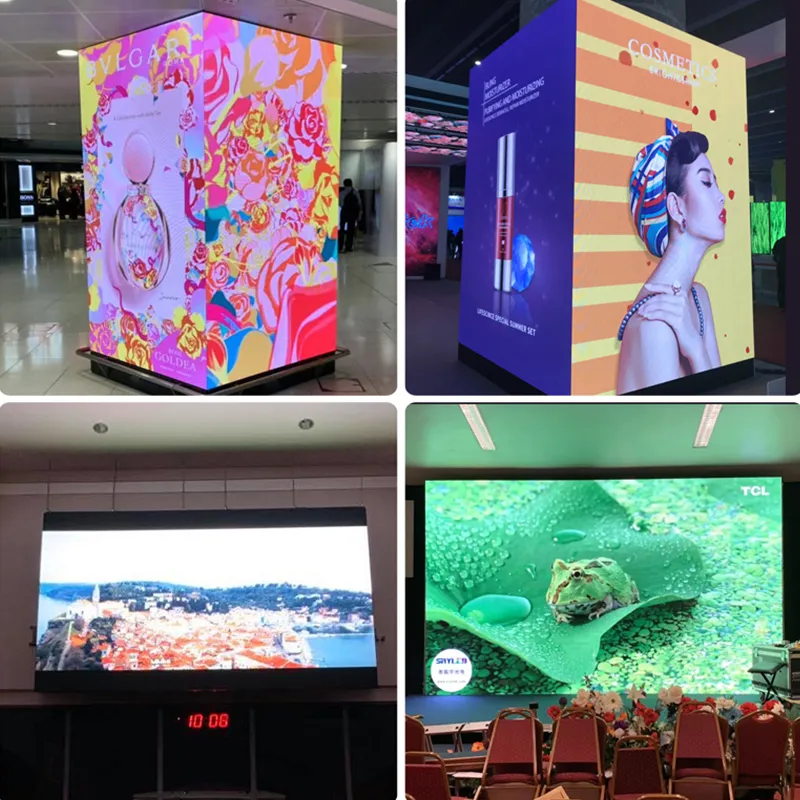

LedManuf indoor advertising LED display screen can be used in shopping mall, school, station, stores, airport, church, cube pillar etc.

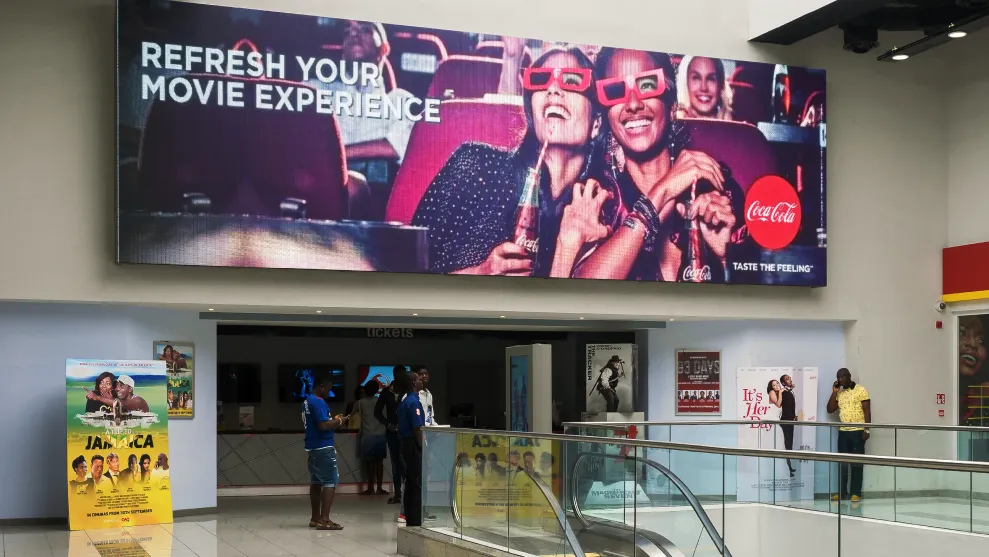

Shopping Mall Advertising LED Display Screen

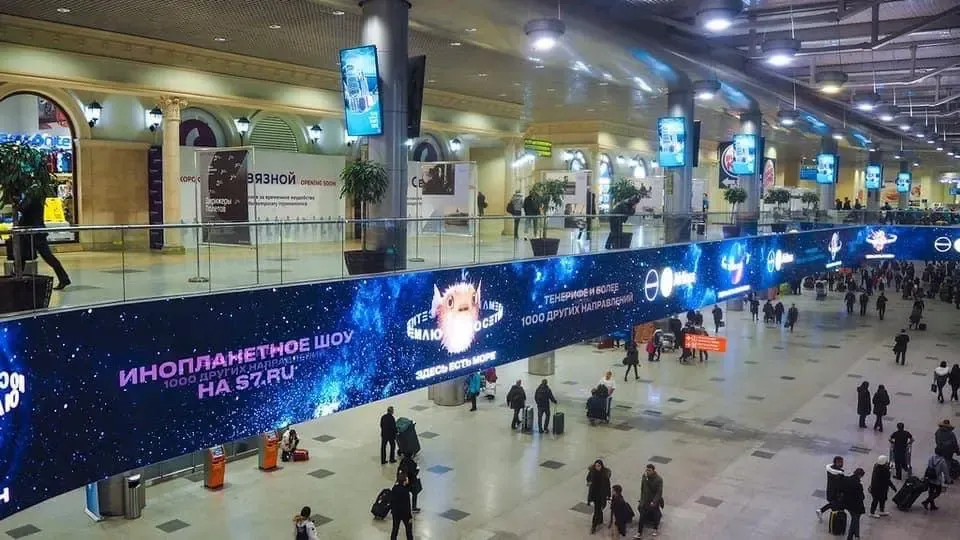

Station Advertising LED Display Screen

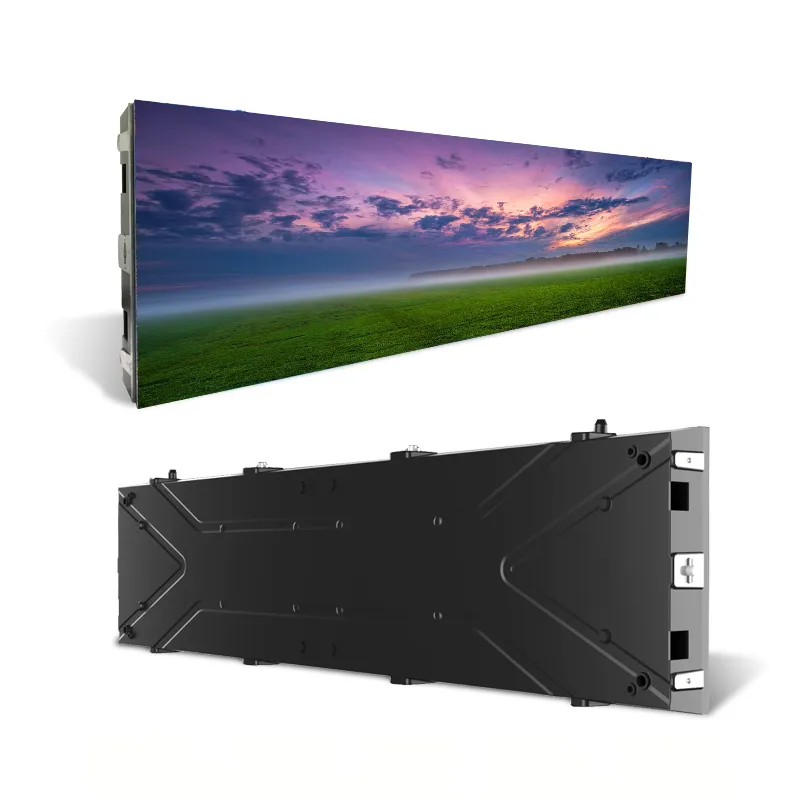

Indoor Advertising LED Display Screen
Product Specifications
P2.604 | P2.976 | P3.91 | P4.81 | |
pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
Density | 147,928 dots/m2 | 112,910 dots/m2 | 65,536 dots/m2 | 43,222 dots/m2 |
Led Type | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
Panel Size | 1000 x 250 mm | 1000 x 250 mm | 1000 x 250 mm | 1000 x 250 mm |
Panel Resolution | 384 x 96 dots | 332 x 84 dots | 256 x 64 dots | 208 x 52 dots |
Panel Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
Screen Weight | 6.5KG | 6.5KG | 6.5KG | 6.5KG |
Drive Method | 1/32 Scan | 1/28 Scan | 1/16 Scan | 1/13 Scan |
Best Viewing Distance | 2.5-25m | 3-30m | 4-40m | 5-50m |
Brightness | 900 nits | 900 nits | 900 nits | 900 nits |
Input Voltage | AC110V/220V ±10% | AC110V/220V ±10% | AC110V/220V ±10% | AC110V/220V ±10% |
Max Power Consumption | 800W | 800W | 800W | 800W |
Average Power Consumption | 300W | 300W | 300W | 300W |
Waterproof (for outdoor) | Front IP65, Rear IP54 | Front IP65, Rear IP54 | Front IP65, Rear IP54 | Front IP65, Rear IP54 |
Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours |
